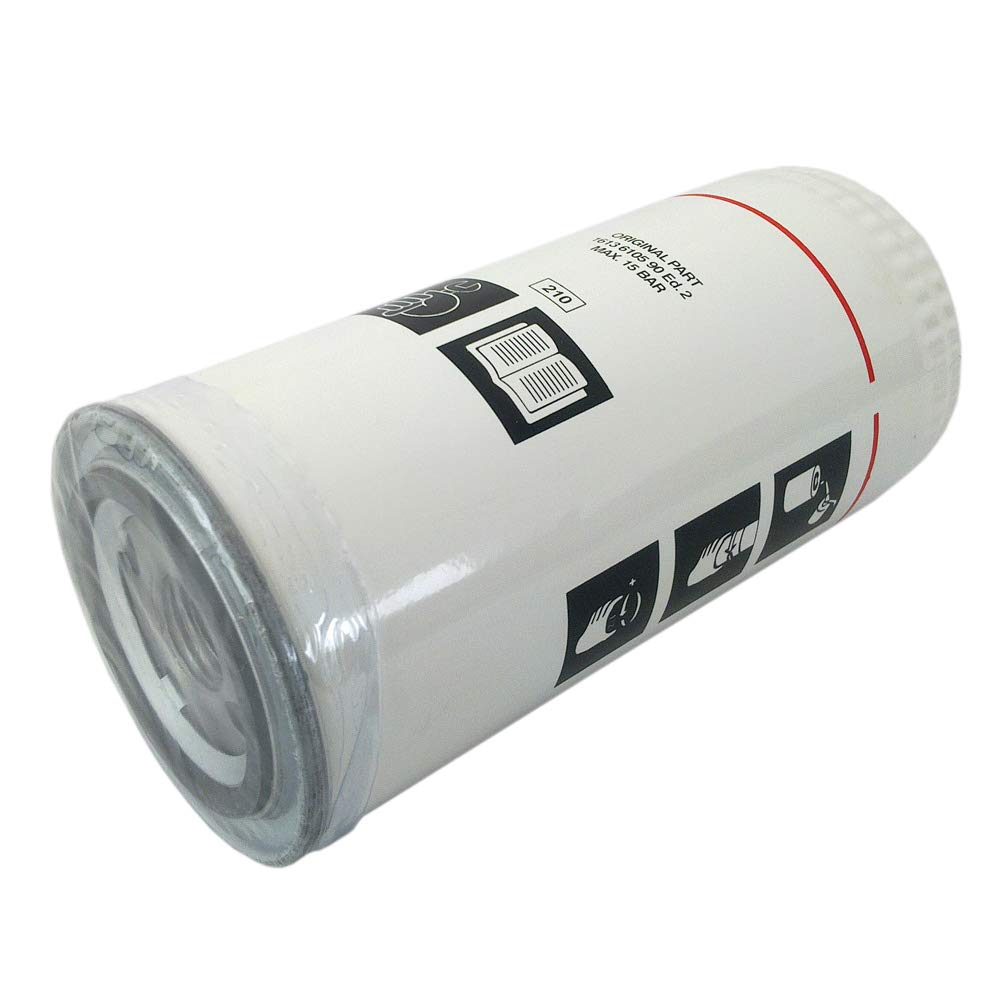

Description
| Parameter | Specification |
|---|---|
| Filtration Media (FILT-MED) | Impregnated Paper, 16 µm |
| Media Type (MED-TYPE) | Impregnated Paper |
| Filtration Rating (F-RATE) | 16 µm |
| Total Height (H-TOTAL) | 209 mm |
| Seal (SEAL) | NBR |
| Material (S-MAT) | NBR |
| Thread (TH) | UNF 1″ Female Bottom, 12 TPI |
| Thread Type (TH-Type) | UNF |
| Thread Size | 1 inch |
| Orientation | Female |
| Position (Pos) | Bottom |
| Threads per Inch (TPI) | 12 |
| Bypass Valve Opening Pressure (UGV) | 2.5 bar |
| Product Net Weight (WEIGHT) | 0.72 kg |
| Smallest Inner Diameter (Ø IN-MIN) | 71 mm |
| Outer Diameter (Ø OUT) | 96 mm |
| HS Code | 84149000 |
